ECO Energy Efficiency

Yes

Launcher Homepages Show

Google Play, Featured Apps, Source, etc

Bluetooth

Bluetooth 5.2

OS

Android R

CPU

64-bit A73*4 @1.6GHz max

UI Style

Android TV UI & TCL TV+ 3.x UI

OSD Language

English, Vietnamese, Thai, Chinese, Russian, Arabic, Traditional Chinese, Indonesian, France, Spanish(LatinAmerica), Farsi, Mongol, Uzbek, Hebrew, Malay, Portuguese, Burmese, etc.

Internet Link

2.4GHz/5GHz dual-band Wi-Fi 802.11 b/g/n/ax 2T2R (WIFI 6);Ethernet Network (RJ45)

LED Indicator

Standby indicator (1-LED, white, middle of speaker mask);MIC indicator (4-LED, colored, middle of speaker mask)

GPU

G52(2EE)MP2, 550Mhz

Certification

CB, Dolby Atmos, Dolby Vision IQ, HDMI, DTS-HD,IMAX;CTS (Google Official Certification), Netflix

TV System

ATV: PAL/NTSC/SECAM-DK/BG/I/M;DTV: DVB-C/T/T2

Power Supply

AC 100V-240V 50/60Hz

AV System

PAL, NTSC

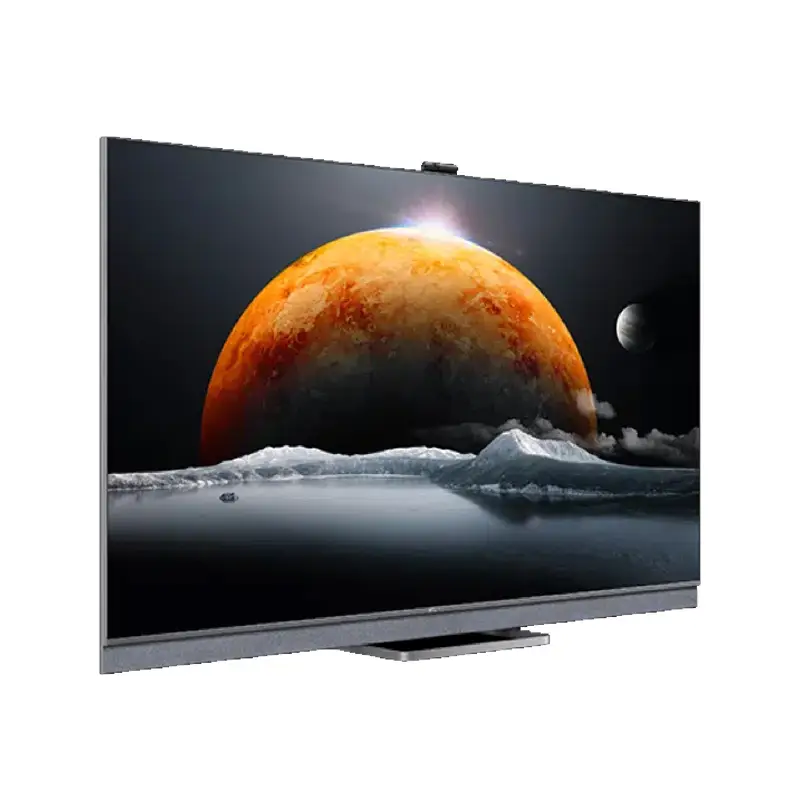

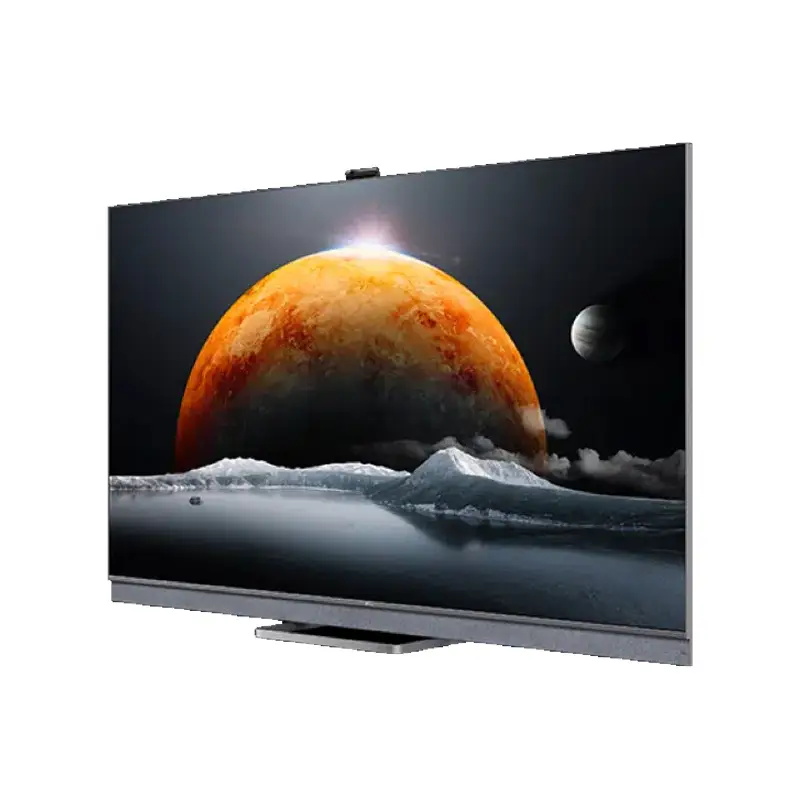

Product Type

Mini LED 4K TV

Power Consumption (TV On)

300W

HDR

HDR10+, Dolby Vision IQ

HDMI & HDCP Version

HDMI1.4 & HDMI2.0&HDMI2.1, HDCP1.4 & HDCP2.2

Power Consumption (Standby)

﹤0.5W

Stoarge

eMMC5.0 32G Bytes

RAM

DDR4-2666: 3G Bytes

Video Format up to

Up to 4K@60Hz-12bit 4:2:2, 4K@60Hz-8bit 4:4:4

USB Mouse/Key Board

Yes

Music

MP3, MKV, WMA, AVI


JPEG/PNG/BMP/WebP/HEIF codec

Mutilmedia Video/Audio Decoder

H.264,H.265,MPEG1/2/4,WMV,VC1,VP8,VP9, AV1

Net Weight without Stand (Kg)

31.4

Carton Dimensions LxWxH (mm)

1645×229×1090

Gross Weight with Packaging (Kg)

40.4

Net Weight with Stand (Kg)

32

Container Loading---20 feet (pcs)

68 (w/o pallet)

Container Loading---40 feet High (pcs)

146 (w/o pallet)

Container Loading---40 feet (pcs)

146(w/o pallet)

Life Time (hrs)

30,000 (typ.)

Display Resolution

3840×2160

Backlight Type

DLED

Panel Supplier (Open Cell)

CSOT

Viewing Angle (H/V) (Open Cell)

178°/178° (typ.)

Colour

1.07G (8 bit + FRC), Quantum Dots , Low Reflection

Brightness (cd/m2)

500 (typ.)

Contrast Ratio (Open Cell)

6000:1 (typ.)

Aspect Ratio

16:9

Response Time (G to G) (ms)

6.5 (typ.)

Refresh Rate (Hz)

120

Color Volume

100% DCI-P3

Panel Active Size (Inch)

65

White Uniformity (Brightness)

≥80%

Others

VRR,AISR,AIPQ,AIAQ

Bluetooth

Yes, for external bluetooth speaker/soundbar

Initial Setup

Yes, for user setting in TV first start-up.

PVR/Timeshif

Yes (for DTV programme only)

Google Assistant

Voice input via remote control;Hands-free voice input via built-in MIC (available later)

Input Setting

For input source device name choice and edit

Instant power on

A special standby mode for start-up in shorter time.

HDMI CEC

Yes

Audio Language/MTS/NICAM

Yes

Subtitle

Yes (for DTV programme only)

Channels Edit

Yes, for TV channel renaming

Input Method

T-IME, Gboard, Virtual Remote Keyboard

System Update

Yes

EPG

Yes (for DTV programme only)

Parental Control

Yes (for DTV programme only)

Overscan

On, Off

Picture Preset

Dynamic, Standard, Smart HDR, Sport, Movie (Game, PC)

Backlight (Brightness)

0~100

Input Lag

15mS @Game Mode

Dynamic Brightness

Off, ECO, Brightness+, Auto

Intelligent Picture

Adaptive Brighteness(on,off), Adaptive Content(on,off)

Screen Mode

16:9, 4:3, Cinerama, 14:9 zoom, 16:9 zoom, 16:9 zoom up

Auto Format

On, Off

Advanced Settings

Contrast, Black Level, Dynamic Contrast, Black Stretch, Gamma, Color Saturation, Tint, Color Temperature, White Balance, Color Space, RGB Mode, Sharpness, Noise Reduction

Motion Clear

On, Off

Colour Saturation

0~100

Special Feature

MEMC (120 Hz), Local dimming

Netflix

Watch TV shows and movies online

Chrome Cast

To cast favorite entertainment and apps contents from your phone, tablet or laptop right to TV.

Google Play Games

Game platform of Google Play

Google Play Store

Popular apps and games.

Media Center

Video/Music play for USB device

YouTube

Android TV version

Google Play Movies & TV

Watch Google Play Movies & TV on Android TV

Screw Size

M5×20

Screw Quantity (pcs)

4

Digtal Audio Out

Pass through, PCM, Auto, Off

Audio Power Output (THD=7%)

2x15W+30W

Dolby Atmos

On, Off

Intelligent Sound

Adaptive Content(on,off)

DTS DRC

On, Off

Speakers

Integrated Speaker Boxes (Bottom Side and Back Side)

Auto Volume Control

On, Off

Sound Mode

Dynamic,Standard, Movie, Music, Voice, Game, Sport

TV Placement

Desk Top, Wall Mount

Audo Delay

0~100

Balance

0~100

Special Feature

ONKYO Audio System

Screw Size

M6×20

VESA Mounting

WMB433

Screw Quantity (pcs)

4

VESA Hole Pattern (mm)

400×400

Back Cover

SECC/HIPS

Middle&Bottom Frame

Aluminium

Speak Mask

Fabric

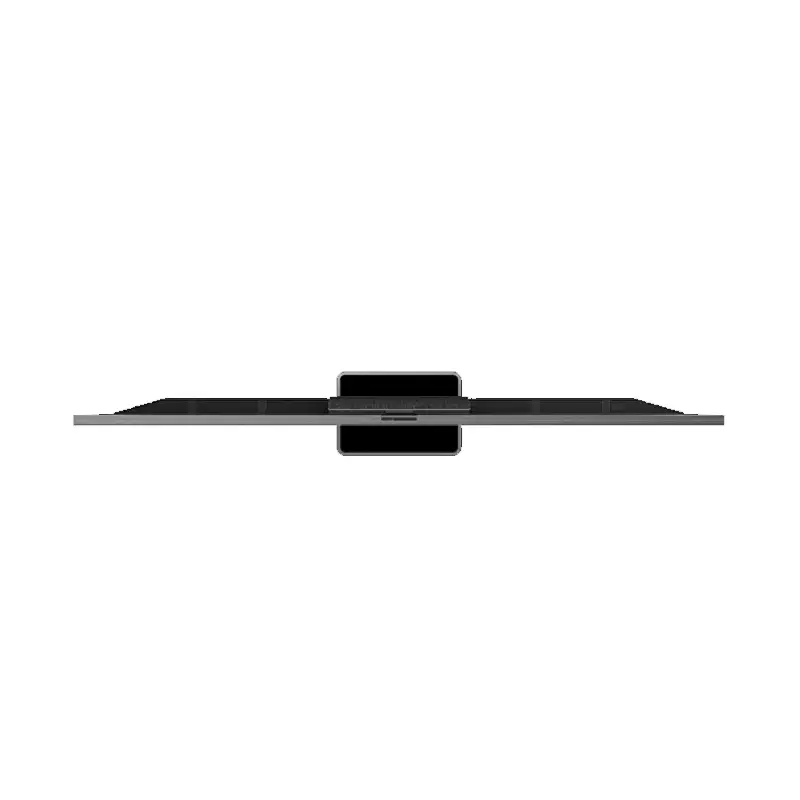

Base Stand

Metal

AC Power Cord

1 pcs

Base Stand

Integrated in Package

Remote Control and Batteries

RC901V(with 2 AAA batteries)

Operation Manual

English (default)

Other

AV Input Adaper (Optional), NFC tag(Optional) ,Camera（Optional）
