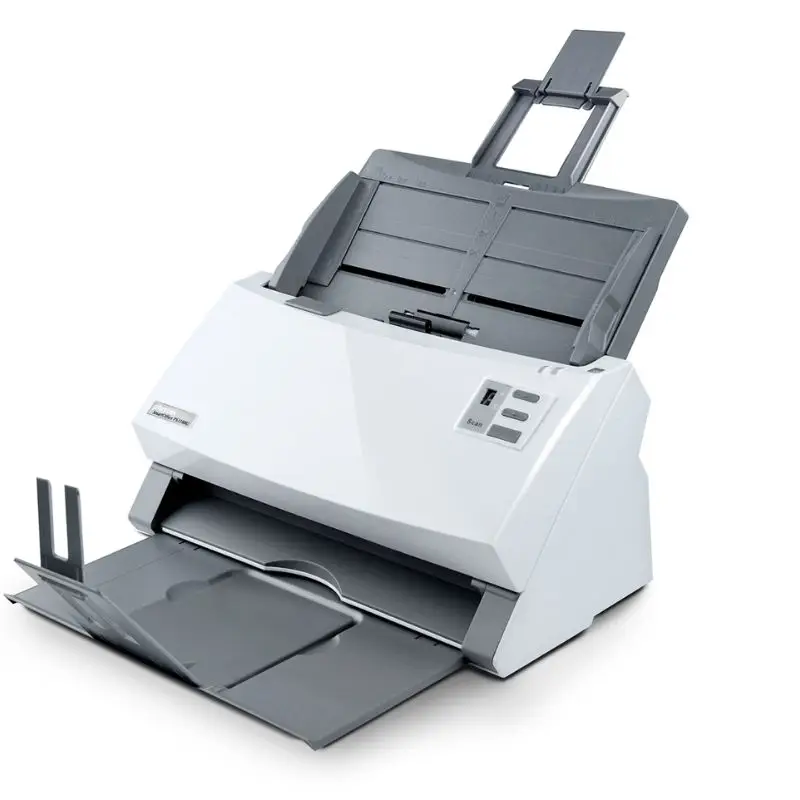

Plustek SmartOffice PS3180U A4 Size Sheet-Feed ADF Scanner

Description

Image Sensor	CIS x 2 (Duplex Scanner)
Light Source	LED
Optical Resolution	600 dpi
Interpolated Resolution	1200 dpi
Hardware Resolution	600 x 1200 dpi
Scan Modes	Color: 48-bit input, 24-bit output Grayscale: 16-bit input, 8-bit output B/W: 1-bit
ADF Capacity	1. 100 sheets (A4/ Letter, 80 g/ãŽ¡ or 20 Lbs) 2. 30 sheets (Business Cards) 3. Plastic Card, Max. thickness under 1.2 mm. Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF )	80 ppm/ 160 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait) 80 ppm/ 160 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait) 45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Portrait) 30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Portrait) Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L)	Max: 216 x 5080 mm (8.5â€ x 200â€) Min: 13.2 x 13.2 mm (0.52â€ x 0.52â€)
Acceptable Paper Sizes (W x L)	Max: 216 x 5080 mm (8.5â€ x 200â€) Min: 50.8 x 50.8 mm (2â€ x 2â€)
Acceptable Paper Weight (Thickness)	40 to 220 g/ãŽ¡ (10 to 58 Lbs)
Multi-feed Detection	With ultrasonic technology
Daily Duty Scan ( Sheets )	8,000
Roller Lifetime (Scans)	300,000
Pad Lifetime (Scans)	100,000
Action Button	4 Buttons: Up, Down, Scan, Standby 9 function keys are all customizable.
Power Supply	24 Vdc/ 1.25 A
Interface	USB 2.0 x 1, USB 2.0 (Host) x 1
Net Weight	2.7 Kgs (5.95 Lbs)
Dimensions (W x D x H)	318.7 x 230.7 x 228.3 mm (12.55" x 9.08" x 8.99")
Protocol	TWAIN Compliant
Operating System	Windows XP / Vista / 7 / 8 / 10 / 11 macOS 10.12.x/ 10.13.x/ 10.14.x/ 10.15.x/ 11.x/ 12.x/ 13.x/ 14.x Linux compatibility is only available for system integrators. Please contact sales@plustek.com for more info.
Hardware Requirements	Windows and Mac 2.0 GHz CPU processor or higher[1][2][3] [1]Windows Recommended: 2.8 GHz IntelÂ® Coreâ„¢ i5 Processor with 4 CPU Cores or higher [2]Support Mac INTEL and M1 based processor [3]Compatibility is not available with PowerPC 4 GB RAM minimum (Recommended: 8 GB or more) 6 GB of hard-disk space for program installation Display dimensions of 1024x768 or greater
Bundled Software	Plustek DocAction Plustek DocTWAIN Plustek MacAction Plustek ICA *Installation DVD only included software and driver for Windows. For Mac, please download from our website.
Built-in OCR	Plustek OCR (For Windows) (Powered by ABBYYÂ® FineReaderÂ®) Plustek DocOCR (For Mac) *Installation DVD only included software and driver for Windows. For Mac, please download from our website.

Image Sensor

CIS x 2 (Duplex Scanner)

Light Source

LED

Optical Resolution

600 dpi

Interpolated Resolution

1200 dpi

Hardware Resolution

600 x 1200 dpi

Scan Modes

Color: 48-bit input, 24-bit output
Grayscale: 16-bit input, 8-bit output
B/W: 1-bit

ADF Capacity

1. 100 sheets (A4/ Letter, 80 g/ãŽ¡ or 20 Lbs)
2. 30 sheets (Business Cards)
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.

Scanning Speed ( ADF )

80 ppm/ 160 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait)
80 ppm/ 160 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait)
45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Portrait)
30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.

Scanning Area (W x L)

Max: 216 x 5080 mm (8.5â€ x 200â€)
Min: 13.2 x 13.2 mm (0.52â€ x 0.52â€)

Acceptable Paper Sizes (W x L)

Max: 216 x 5080 mm (8.5â€ x 200â€)
Min: 50.8 x 50.8 mm (2â€ x 2â€)

Acceptable Paper Weight (Thickness)

40 to 220 g/ãŽ¡ (10 to 58 Lbs)

Multi-feed Detection

With ultrasonic technology

Daily Duty Scan ( Sheets )

8,000

Roller Lifetime (Scans)

300,000

Pad Lifetime (Scans)

100,000

Action Button

4 Buttons: Up, Down, Scan, Standby
9 function keys are all customizable.

Power Supply

24 Vdc/ 1.25 A

Interface

USB 2.0 x 1, USB 2.0 (Host) x 1

Net Weight

2.7 Kgs (5.95 Lbs)

Dimensions (W x D x H)

318.7 x 230.7 x 228.3 mm (12.55" x 9.08" x 8.99")

Protocol

TWAIN Compliant

Operating System

Windows XP / Vista / 7 / 8 / 10 / 11
macOS 10.12.x/ 10.13.x/ 10.14.x/ 10.15.x/ 11.x/ 12.x/ 13.x/ 14.x
Linux compatibility is only available for system integrators. Please contact sales@plustek.com for more info.

Hardware Requirements

Windows and Mac
2.0 GHz CPU processor or higher[1][2][3]
[1]Windows Recommended: 2.8 GHz IntelÂ® Coreâ„¢ i5 Processor with 4 CPU Cores or higher
[2]Support Mac INTEL and M1 based processor
[3]Compatibility is not available with PowerPC
4 GB RAM minimum (Recommended: 8 GB or more)
6 GB of hard-disk space for program installation
Display dimensions of 1024x768 or greater

Bundled Software

Plustek DocAction
Plustek DocTWAIN
Plustek MacAction
Plustek ICA

*Installation DVD only included software and driver for Windows. For Mac, please download from our website.

Built-in OCR

Plustek OCR (For Windows)
(Powered by ABBYYÂ® FineReaderÂ®)

Plustek DocOCR (For Mac)

*Installation DVD only included software and driver for Windows. For Mac, please download from our website.
