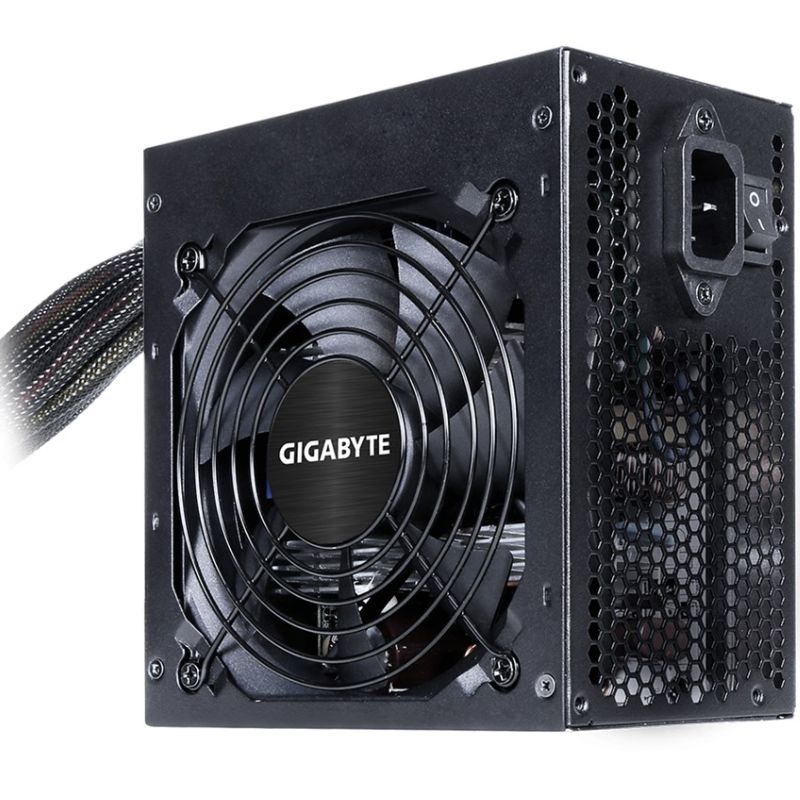

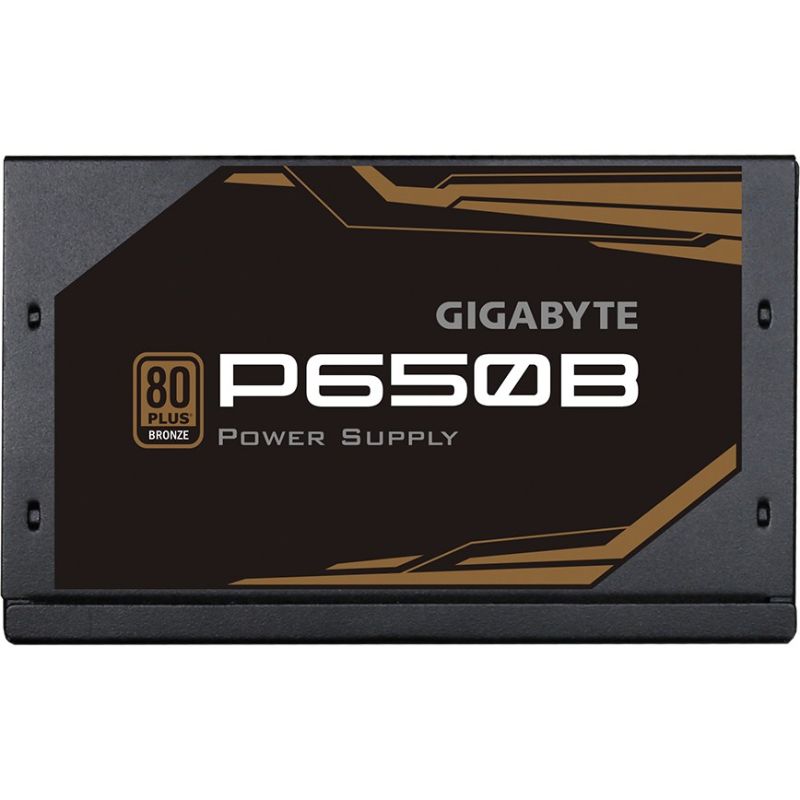

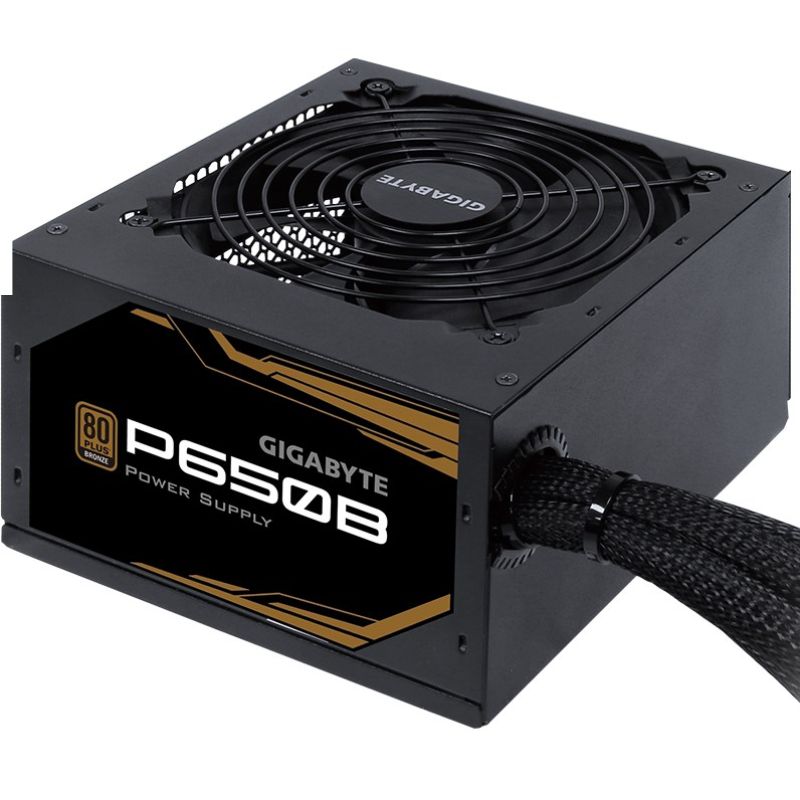

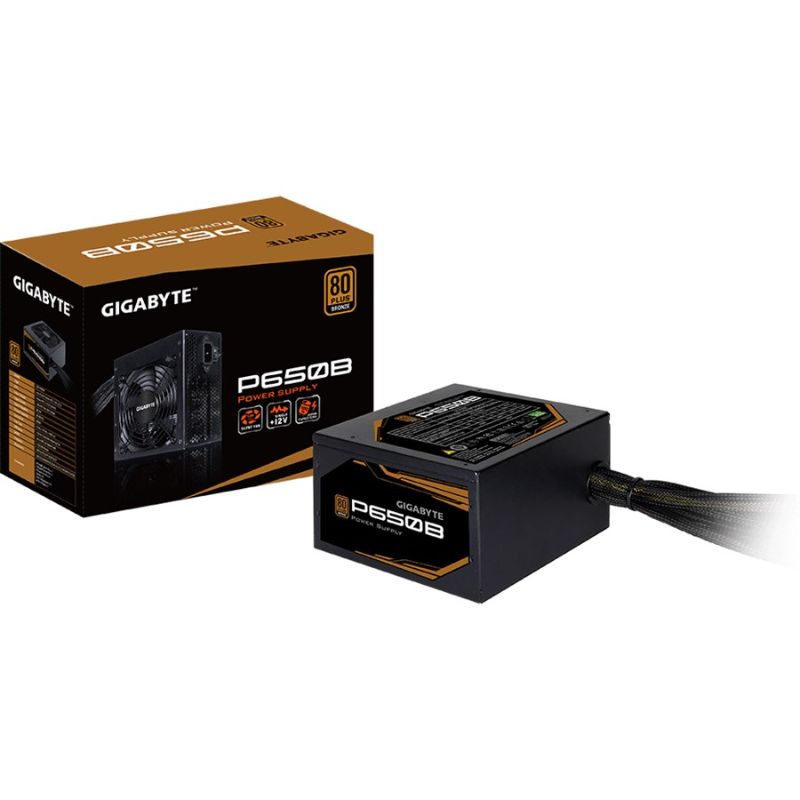

Model

P650B

Type

Intel Form Factor ATX 12V v2.31

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

9A-4A

Input Frequency

50-60 Hz

Output Capacity

650W

Dimension

D150 x W140 x H86 mm

Fan Type

120mm Hydraulic Bearing Fan

Efficiency

Up to 85% at typical load

MTBF

>100,000 hours

Protection

OPP/UVP/OVP/SCP/OCP

Regulatory

CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE

Connectors

ATX/MB 20+4 Pin x 1

CPU/EPS 4+4 Pin x 1

PCI-e 6+2 Pin x 4, SATA x 6

4 Pin Peripheral x 3

4 Pin Floppy x 1
