Type

22.5mm x 15.0mm CMOS

Effective Pixels

Approx. 20.20 megapixels

Total Pixels

Approx. 20.90 megapixels

Aspect Ratio

3:2

Low-Pass Filter

Built-in/Fixed with fluorine coating

Sensor Cleaning

EOS integrated cleaning system

Colour Filter Type

Primary Colour

Type

DIGIC 5+

Lens Mount

EF/EF-S

Focal Length

Equivalent to 1.6x the focal length of the lens

Type

TTL-CT-SIR with a CMOS sensor

AF System/ Points

19 cross-type AF points (extra sensitivity at f/2.8 at centre)¹

AF Working Range

EV -0.5 - 18 (at 23°C & ISO100)

AF Modes

AI Focus

One Shot

AI Servo

AF Point Selection

Automatic selection: 19 point AF

Manual selection: Single point AF

Manual selection: Zone AF

AF points can be selected separately for vertical and horizontal shooting

Selected AF Point Display

Indicated by a transmissive LCD in viewfinder and on top LCD panel and Quick Control screen

Predictive AF

Yes, up to 8m¹

AF Lock

Locked when shutter button is pressed half way in One Shot AF mode or AF-ON button is pressed.

AF Assist Beam

Intermittent firing of built-in flash or emitted by optional dedicated Speedlite

Manual Focus

Selected on lens

AF Microadjustment

C.Fn II-13

+/- 20 steps (wide and tele setting for Zooms)

Adjust all lenses by same amount

Adjust up to 40 lenses individually

Adjustments remembered for lens by serial number

Metering Modes

TTL full aperture metering with 63 zone Dual Layer SPC

(1) Evaluative metering (linked to all AF points)

(2) Partial metering (approx. 7.7% of viewfinder at centre)

(3) Spot metering (approx. 3.0% viewfinder at centre)

(4) Centre weighted average metering

Metering Range

EV 1-20 (at 23°C with 50mm f/1.4 lens ISO100)

AE Lock

Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved.

Manual: By AE lock button in creative zone modes.

Exposure Compensation

+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).

AEB

2, 3, 5 or 7 Shots +/-3 EV 1/3 or 1/2 stop increments

ISO Sensitivity*

Auto (100-12800), 100-12800 (in 1/3-stop or whole stop increments)

ISO can be expanded to H: 25600

During Movie shooting: Auto (100-6400), 100-6400 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 12800

Type

Electronically-controlled focal-plane shutter

Speed

30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

Type

Auto white balance with the imaging sensor

Settings

AWB, Daylight, Shade, Cloudy, Tungsten, White

Fluorescent light, Flash, Custom, Colour Temperature Setting.

White balance compensation:

1. Blue/Amber +/-9

2. Magenta/ Green +/-9.

Custom White Balance

Yes, 1 setting can be registered

WB Bracketing

+/-3 levels in single level increments

3 bracketed images per shutter release.

Selectable Blue/Amber bias or Magenta/ Green bias.

Type

Pentaprism

Coverage (Vertical/Horizontal)

Approx. 98%

Magnification

Approx. 0.95x¹

Eyepoint

Approx. 22mm (from eyepiece lens centre)

Dioptre Correction

-3 to +1 m-1 (dioptre)

Focusing Screen

Fixed (Transmissive LCD screen)

Mirror

Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF 600mm f/4 IS USM or shorter)

Viewfinder Information

AF information: AF points, focus confirmation¹, AF area selection mode

Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB.

Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light.

Image information: Card information, maximum burst (2 digit display), Highlight tone priority (D+).

Composition information: Grid, Electronic level (2 methods)

Other information: Battery check, Alert symbol

Depth of Field Preview

Yes, with Depth of Field preview button.

Eyepiece Shutter

On strap

Type

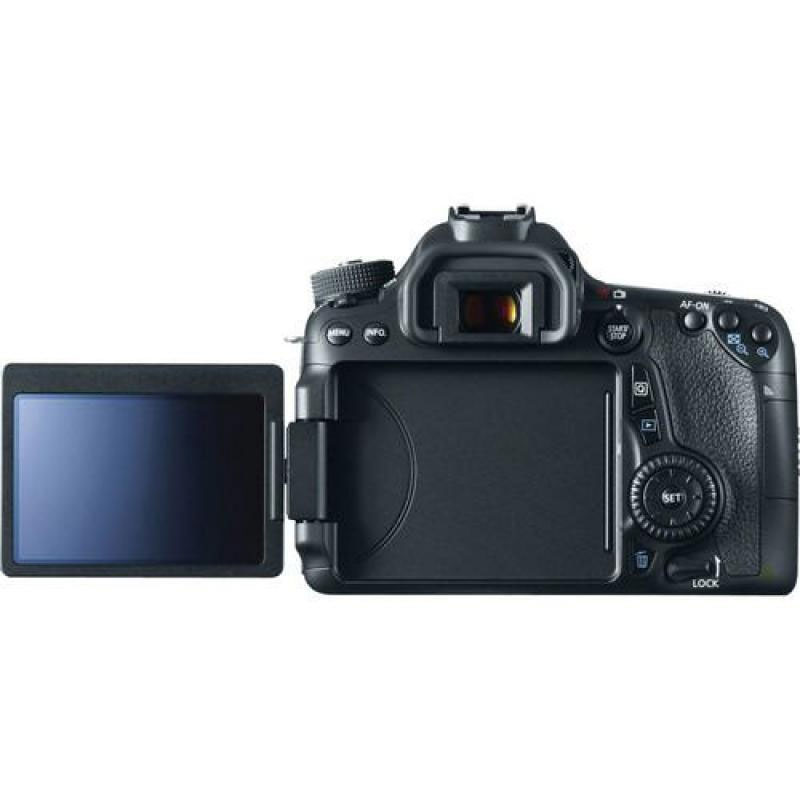

Vari angle 7.7cm (3.0") 3:2 Clear View II TFT, approx. 1040K dots

Coverage

Approx. 100%

Viewing Angle (Horizontally/Vertically)

Approx 170°

Coating

Anti-reflection, Solid Structure and Anti smudge

Brightness Adjustment

Adjustable to one of seven levels

Display Options

(1) Quick Control Screen

(2) Camera settings

(3) Electronic Level

Built-in Flash GN (ISO 100, meters)

12

Built-in Flash Coverage

up to 17mm focal length (35mm equivalent: 28mm)

Built-in Flash Recycle Time

Approx. 3 seconds

Modes

Auto, Manual flash, Integrated Speedlite Transmitter

Red-Eye Reduction

Yes - with red-eye reduction lamp

X-Sync

1/250sec

Flash Exposure Compensation

+/- 3EV in 1/2 or 1/3 increments

Flash Exposure Bracketing

Yes, with compatible External Flash

Flash Exposure Lock

Yes

Second Curtain Synchronisation

Yes

HotShoe/ PC Terminal

Yes/ No

External Flash Compatibility

E-TTL II with EX series Speedlites, wireless multi-flash support

External Flash Control

via camera menu screen

Modes

Scene Intelligent Auto (Stills and Movie), No Flash, Creative Auto, SCN(Portrait, Landscape, Close-up, Sports, Night Portrait, Handheld Night Scene, HDR Backlight Control), Program AE, Shutter priority AE, Aperture priority AE, Manual (Stills and Movie), Bulb, Custom

Picture Styles

Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3)

Colour Space

sRGB and Adobe RGB

Image Processing

Highlight Tone Priority

Auto Lighting Optimizer (4 settings)

Long exposure noise reduction

High ISO speed noise reduction (4 settings)

Multi Shot Noise Reduction

Auto Correction of Lens Peripheral illumination and Chromatic aberration correction

Basic+ (Shoot by ambience selection, Shoot by lighting or scene type)

Creative filters (Art Bold, Water painting, Grainy B/W, Soft focus, Toy camera, Miniature effect, Fish-eye)

RAW image processing - during image Playback only

Resize to M or S1, S2, S3

Drive Modes

Single, Continuous L, Continuous H, Self timer (2s+remote, 10s +remote), Silent single shooting, Silent continous shooting

Continuous Shooting

Max. Approx. 7fps. (speed maintained for up to 65 images (JPEG)¹³(with UHS-I card), 16 images (RAW))²³

Type

Electronic viewfinder with image sensor

Coverage

Approx. 100% (horizontally and vertically)

Frame Rate

30 fps

Focusing

Manual Focus (Magnify the image 5x or 10x at any point on screen)

Autofocus: Dual Pixel CMOS AF (Face detection and Tracking AF, FlexiZone-Multi, FlexiZone-Single), Phase detection AF (Quick mode)

Metering

Real-time evaluative metering with image sensor.

Evaluative metering, partial metering, spot metering, center-weighted average metering.

Display Options

Grid overlay (x3), Histogram, Multi aspect ratios

Still Image Type

JPEG: Fine, Normal (Exif 2.21 [Exif Print] compliant) / Design rule for Camera File system (2.0),

RAW: RAW, M-RAW, S-RAW (14bit, Canon original RAW 2nd edition),

Digital Print Order Format [DPOF] Version 1.1 compliant

RAW+JPEG Simultaneous Recording

Yes, any combination of RAW + JPEG, M-RAW + JPEG, S-RAW + JPEG possible.

Image Size

JPEG 3:2: (L) 5472x3648, (M) 3648x2432, (S1) 2736x1824, (S2) 1920x1280, (S3) 720x480

JPEG 4:3: (L) 4864x3648, (M) 3248x2432, (S1) 2432x1824, (S2) 1696x1280, (S3) 640x480

JPEG 16:9: (L) 5472x3072, (M) 3648x2048, (S1) 2736x1536, (S2) 1920x1080, (S3) 720x408

JPEG 1:1: (L) 3648x3648, (M) 2432x2432, (S1) 1824x1824, (S2) 1280x1280, (S3) 480x480

RAW: (RAW) 5472x3648, (M-RAW) 4104x2736, (S-RAW) 2736x1824

Movie Type

MOV (Video: H.264 Intra frame / inter frame, Sound: Linear PCM, recording level can be manually adjusted by user)

Movie Size

1920 x 1080 (29.97, 25, 23.976 fps) intra or inter frame

1280 x 720 (59.94, 50 fps) intra or inter frame

640 x 480 (29.97, 25 fps) inter frame

Movie Length

Max duration 29min 59sec, Max file size 4GB (If file size exceeds 4GB a new file will be created automatically)

Folders

New folders can be manually created and selected

File Numbering

(1) Consecutive numbering

(2) Auto reset

(3) Manual reset

Custom Functions

23 Custom Functions

Metadata Tag

User copyright information (can be set in camera)

Image rating (0-5 stars)

LCD Panel / Illumination

Yes / Yes

Water/ Dust Resistance

Yes (equal to EOS-1N)

Sound Memo

No

Intelligent Orientation Sensor

Yes

Playback Zoom

1.5x - 10x

Display Formats

(1) Single image with information (2 levels)

(2) Single image

(3) 4 image index

(4) 9 image index

(5) Jump Display

Slide Show

Image selection: All images, by Date, Folder, Movies, Stills

Playback time: 1/2/3/5/10/20 seconds

Repeat: On/Off

Background music: On/Off

Transition effect: Off, Slide in 1, Slide in 2, Fade 1, Fade 2, Fade 3

Histogram

Brightness: Yes

RGB: Yes

Highlight Alert

Yes

Image Erase/Protection

Erase: Single image, All images in folder, Checkmarked images, unprotected images

Protection: Erase protection of one image at a time

Menu Categories

(1) Shooting menu (x6)

(2) Playback menu (x3)

(3) Setup menu (x4)

(4) Custom Functions menu

(5) My Menu

Menu Languages

25 Languages

English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese

Firmware Update

Update possible by the user.

Computer

Hi-Speed USB

Other

Video output (PAL/ NTSC) (integrated with USB terminal), HDMI mini output (HDMI-CEC compatible), External microphone (3.5mm Stereo mini jack)

Canon Printers

Canon Compact Photo Printers and PIXMA Printers supporting PictBridge

PictBridge

Yes

Type

SD, SDHC or SDXC (UHS-I)card

PC & Macintosh

Windows 8 / 7 / 7 SP1 / Vista SP2 / XP SP3

OS X v10.6, v10.7, v10.8

Browsing & Printing

ImageBrowser EX

Image Processing

Digital Photo Professional

Other

PhotoStitch, EOS Utility, Picture Style Editor

Batteries

Rechargeable Li-ion Battery LP-E6 (supplied), built in for date & settings

Battery Life

Approx. 920 (at 23°C, AE 50%, FE 50%)¹

Approx. 850 (at 0°C, AE 50%, FE 50%)

Battery Indicator

6 levels + percentage

Power Saving

Power turns off after 1, 2, 4, 8, 15 or 30mins.

Power Supply & Battery Chargers

AC Adapter Kit ACK-E6, Battery charger LC-E6, Car Battery charger CBC-E6

Body Materials

Aluminium and polycarbonate resin with glass and conductive fibre

Operating Environment

0 – 40 °C, 85% or less humidity

Dimensions (WxHxD)

139.0 x 104.3 x 78.5mm

Weight (Body Only)

Approx. 755g (CIPA testing standard, including battery and memory card)

Viewfinder

Eyecup Eb, E-series Dioptric Adjustment Lens, Eyepiece Extender EP-EX15II, Angle Finder C

Case

Leather case EH21-L

Wireless File Transmitter

Built in

Lenses

All EF and EF-S lenses

Flash

Canon Speedlites (90EX, 220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)

Battery Grip

BG-E14

Remote Controller/ Switch

Remote Switch RS-60E3, Remote Controller RC-6

Other

Hand Strap E2, GP-E2
